Wednesday, November 30, 2011

ADF Query Component Usage with ADF Panel Stretch Layout

There is a very nice layout component in ADF 11g - af:panelStretchLayout (ADF Panel Stretch Layout). This component comes with 5 facets - Bottom, Center, End, Start and Top. It allows to split your page layout in more easy way - you can put menu component into Top facet, functional logic into Center facet.

Everything seems okej and clear, however there is hidden issue when you need to have menu elements in Top facet dependent on ADF Query from Center facet. For example, menu item can be enabled/disabled based on ADF Query results:

click here detail read post

project workspace download

JDeveloper 11g and ADF Task Flow Parameters

Developed sample application - is based on standard HR schema, Departments and Employees entities. Unbounded task flow contains selectDepartments page and call to separate bounded task flow. Bounded task flow contains employees page and Task Flow Return component, this component allow to return to calling ADF Task Flow.

When I was creating this application, I have used Fusion Web Application (ADF) as a template for developed sample application. Empty unbounded task flow was created automatically - adfc-config.xml. My next step was to create bounded task flow - task-flow-definition.xml:
click here detail read post

project workspace download

Create, Edit and Delete operations in ADF Faces af:table component

Developed sample application, provides read-only table with those actions - Delete, Create, Edit, Save, Cancel. Row selected for editing is shown in editable mode and can be updated. Application is based on HR schema that comes with Oracle XE database. Application logic is based on Jobs entity from HR schema.
This sample is developed using the same principle as described in my previous post. I will describe what are the differences in implementation:
click here detail read post

project workspace download

Monday, November 28, 2011

Install Oracle JDevevoper

In this post, I will explain how to install oracle jdeveloper tools on windows and linux os. which is almost same way.
1. first of all you must download jdeveloper installer from here.

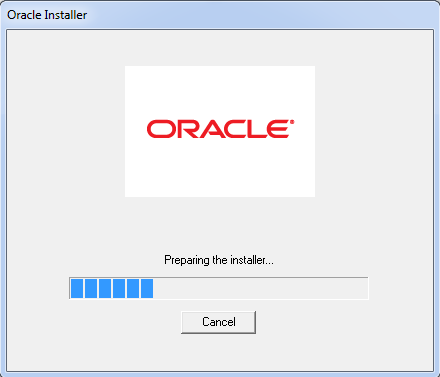

2. click the exe installer file

3. click next.

4. choose oracle middleware home. if you have already oracle home which is show on and didn't have select create new middleware home.

5. click next

6. Installation process will install the following software products
JDeveloper and ADF
Weblogic Server

7. choose JDK

If you had already installed jdk, you can set the jdk location. if not new jdk will install on your oracle home.
8. click next

9. click next.

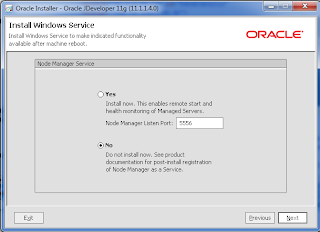

here you can insert Node manager port. Default value is 5556. if select YES nodemanager automatically runs when start OS

10. starting install
11. Installation Summary

that's finish

Sunday, November 27, 2011

ADF application deployment to custom weblogic domain

few days ago, I had problems for adf web application deployment to weblogic custom domain.
today is, I will post about the web deploy to custom domain.

There are some some useful posts:

If below error occurs while deploying the error fixed by follow steps

1. Caused by: java.lang.ClassNotFoundException: oracle.adf.model.servlet.ADFBindingFilter
See server logs or server console for more details.

----check ADF Web Runtime

2. Caused by: java.lang.ClassNotFoundException: oracle.bc4j.mbean.BC4JConfigLifeCycleCallBack
See server logs or server console for more details.

----check BC4J Runtime

3. Caused by: java.lang.ClassNotFoundException: oracle.jsp.runtimev2.JspServlet
See server logs or server console for more details.

ojsp.jar: copy ojsp.jar file to domain lib directory and restart domain

4.Caused by: java.lang.ClassNotFoundException: oracle.adf.library.webapp.ResourceServlet
See server logs or server console for more details.

----ADF Common Web Runtime

go to Project properties->deployments->Edit->WEB-INF/lib->contributors on left tab panel then check libraries.

okey ,now deployment success finished. The application worked normal. but showed up warning message on admin consle and UI.

I added to the groovy-all jar file to the CLASSPATH in
